Bär Cargolift Ret/HydFalt
The retractable tail gate with double folded platform

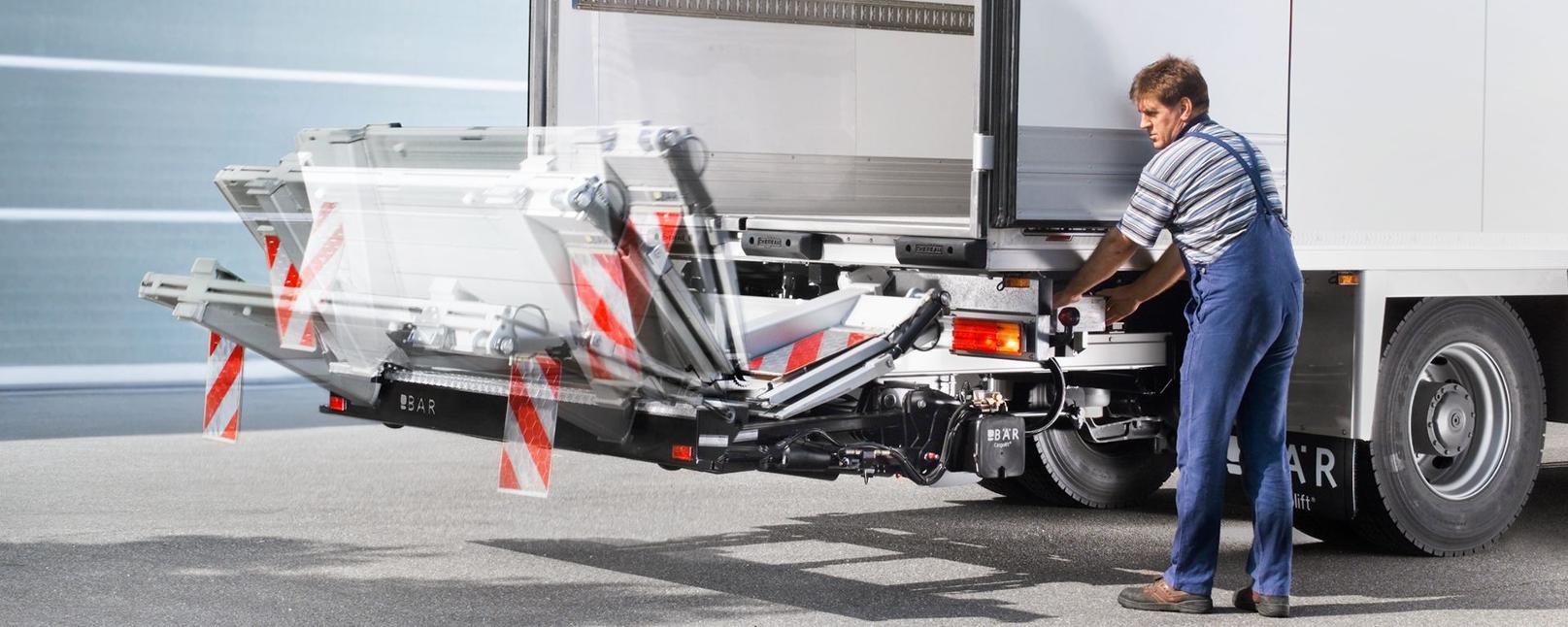

Bär Cargolift HydFalt – Horizontally hydraulically retractable, twice hydraulically foldable
Available since 1994, the Bär Cargolift HydFalt remains a force of innovation. After all, HydFalt Cargolifts can be extended and retracted hydraulically, and can also be folded hydraulically. This increases user comfort in daily use and makes the Cargolift ready for use even more quickly. The standard anodised aluminium platform also gives it an attractive appearance. Since 2021, HydFalt operation has been unimaginably simple: First, several operating functions were combined in one operating command with the EasyFold automatic function sequence. Since 2022, the Bär SmartControl Plus radio remote control will also use EasyFold and thus enable HydFalt operation by radio including platform folding. So that the lift can also be operated safely at night.

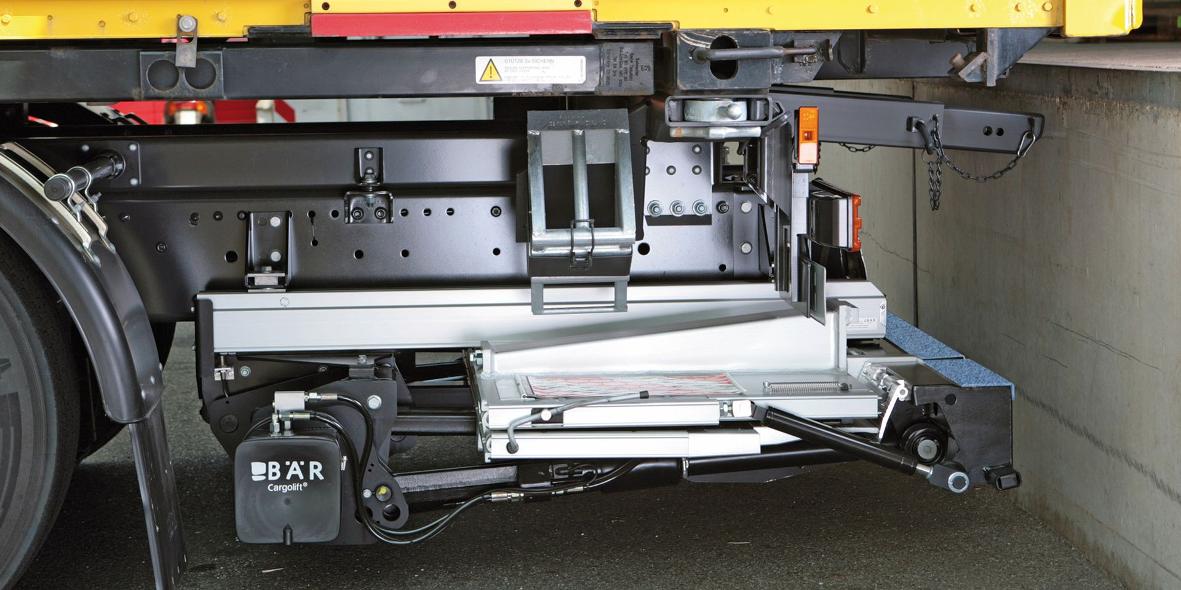

Bär Cargolift RetFalt - Flexible, simple and robust
Those who prefer manual platform folding choose the RetFalt version and unfold the platform twice by hand with spring support.
All Ret/HydFalt Cargolifts have a double folded platform and automatic stops which make retraction and extension in the dark or in poor weather conditions easier.

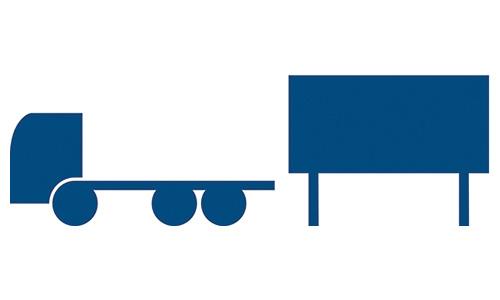

With a BDF swapping mechanism, a universal distribution vehicle is created

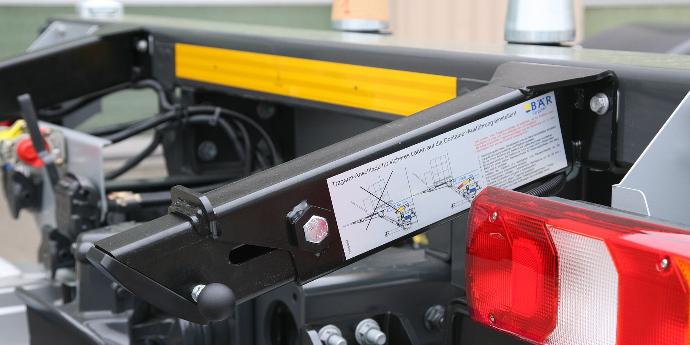

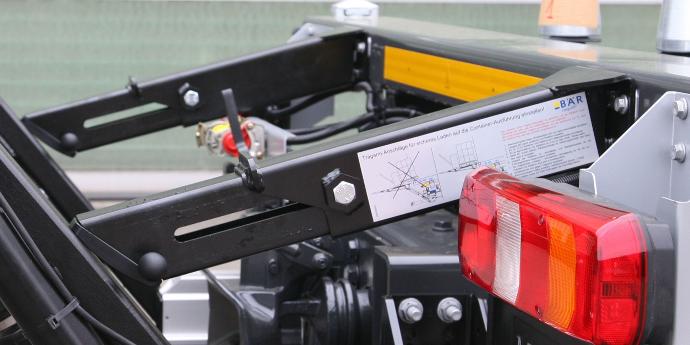

All retractable Ret/HydFalt Cargolifts – no matter if folded manually (R42) or hydraulically (H42) – can be mounted on BDF swap bodies. With the lifting arm stops and bridge plate (both optional), you can choose between various swap bodies in accordance with EN 284. Platform / flatbed, dry freight or refrigerated body with size C 715 and C745 (also C 782 after modification).
This product group Ret/HydFalt includes the following lifts:
- BC 1500 R42
- BC 2000 R42
- BC 1500 H42
- BC 2000 H42
Equipment for Bär Cargolift Ret/HydFalt
You have already become acquainted with some of the equipment - for example, for fitment to BDF SWAP bodies and the automatic EasyFold function sequence for HydFalt. Here you will find a selection of further equipment, more information is waiting for you in the portfolio brochure.

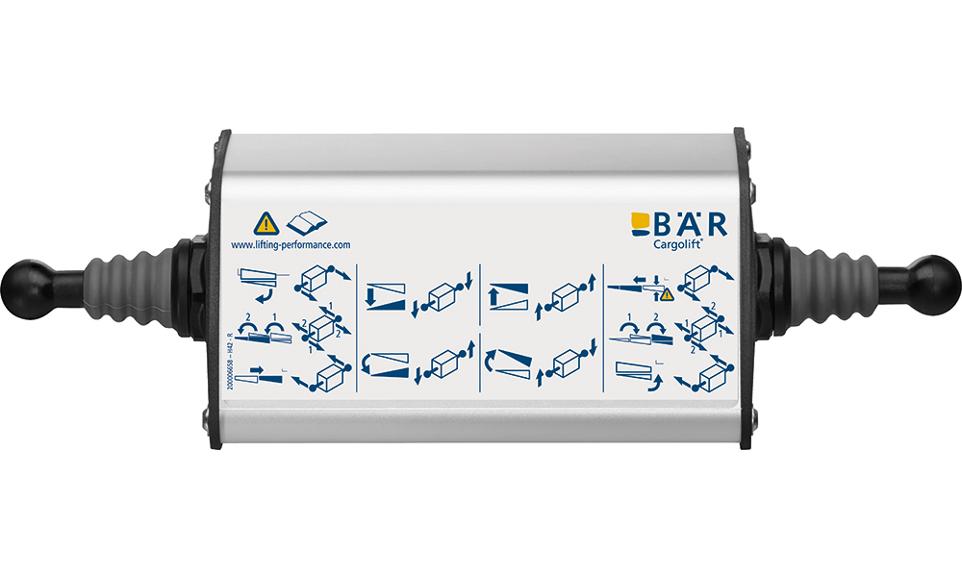

The standard operating unit of the HydFalt Cargolifts BC H42
Robustly constructed and, thanks to the cross-lever switches, perfectly operable even with gloves on - that is the Bär Control EVO control box. Optionally, the automatic function sequence EasyFold as well as the SwitchKey for switching on and off via the left operating lever are available.
Operating film of Bär Cargolift HydFalt H42 with Bär Control EVO on YouTube

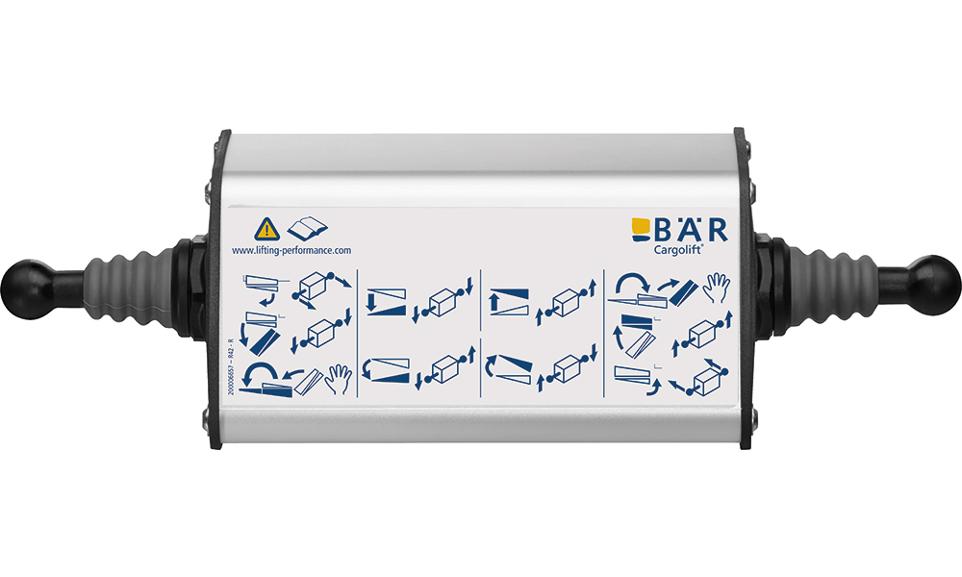

The serial control box of the RetFalt Cargolifts BC R42
Intuitively usable, robustly built and perfectly operable even with gloves thanks to the cross lever switches - that is the Bär Control EVO operating unit. Optionally, the SwitchKey is available for switching on and off via the left operating lever.
Bär Cargolift RetFalt R42 operating film with Bär Control EVO operating unit on YouTube

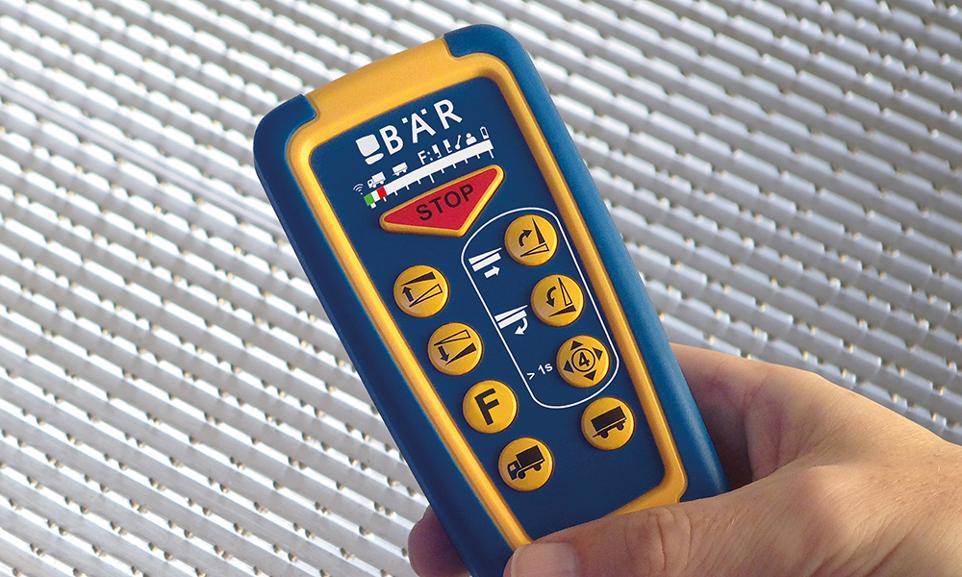

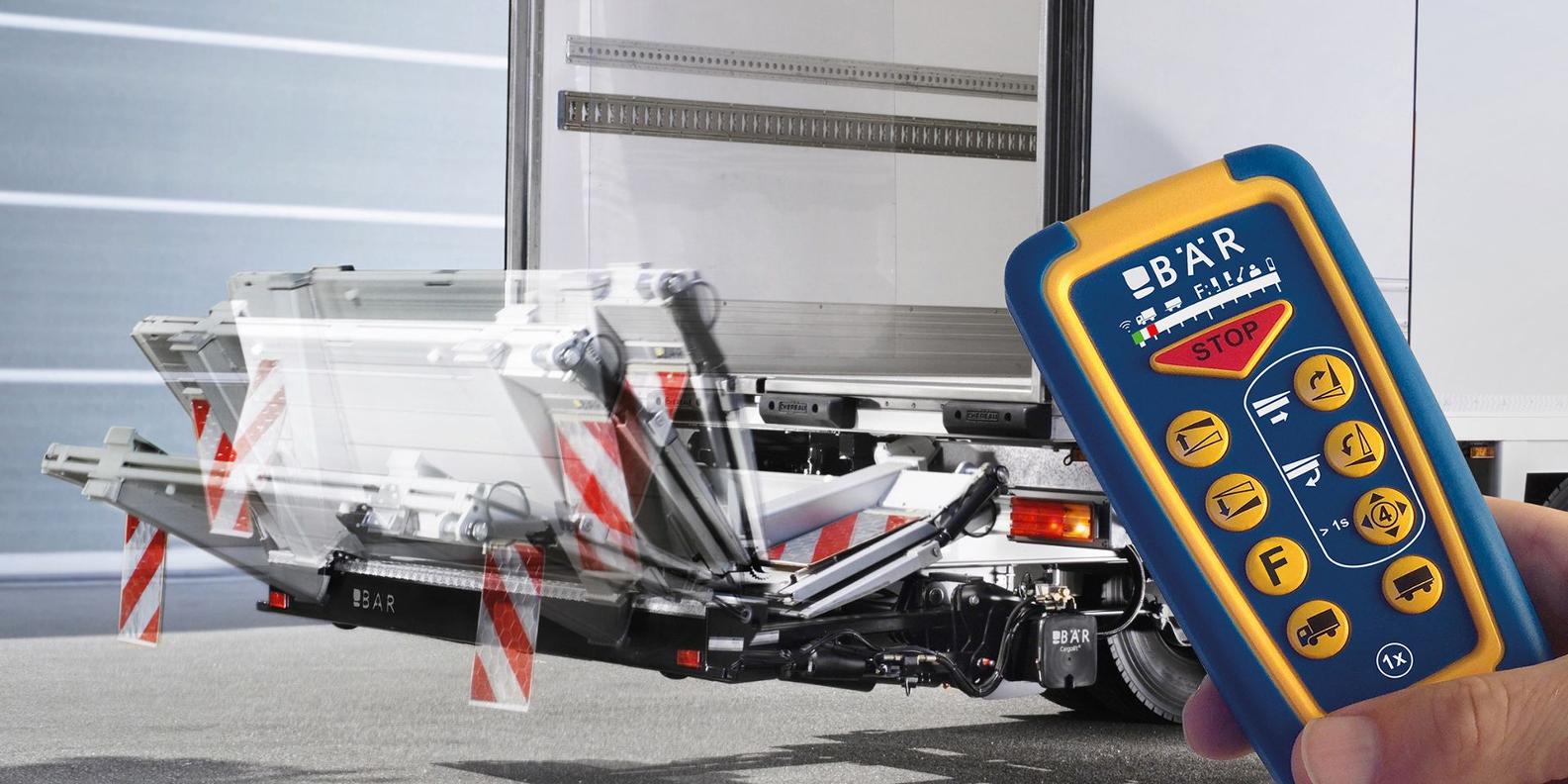

The radio remote control for highest requirements - Bär SmartControl Plus
Extend and retract the RetFalt Cargolifts by radio? No problem for the Bär SmartControl Plus radio remote control! But this remote control offers even more possibilities: For example, automatic protection against unauthorised operation when leaving the vehicle: RadioKey locks all controls as soon as the Plus hand-held transmitter leaves the working area. Or operating HydFalt by radio - including platform folding. Available as battery-powered hand transmitter or as rechargeable version with docking station.
Operating film of Bär Cargolift HydFalt H42 with Bär SmartControl Plus on YouTube
The double-folded, accessible aluminium platform
All Cargolifts of the product group Ret/HydFalt are equipped with a double folded aluminium platform. HydFalt Cargolifts (H42) are fully hydraulically foldable from platform height 1810 mm. The HydFalt platform is anodised as standard. In the case of RetFalt Cargolifts (R42), manual folding is user-friendly with spring relief. The RetFalt platform is aluminium natural as standard.

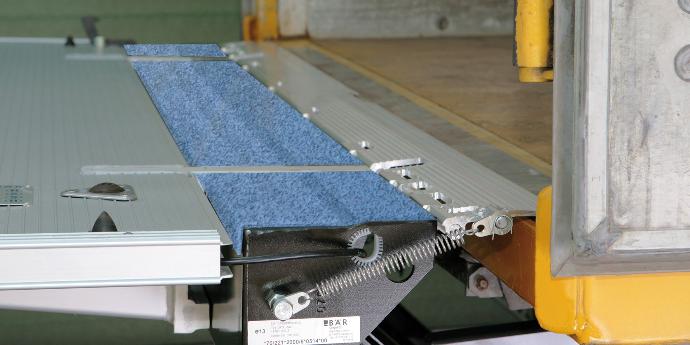

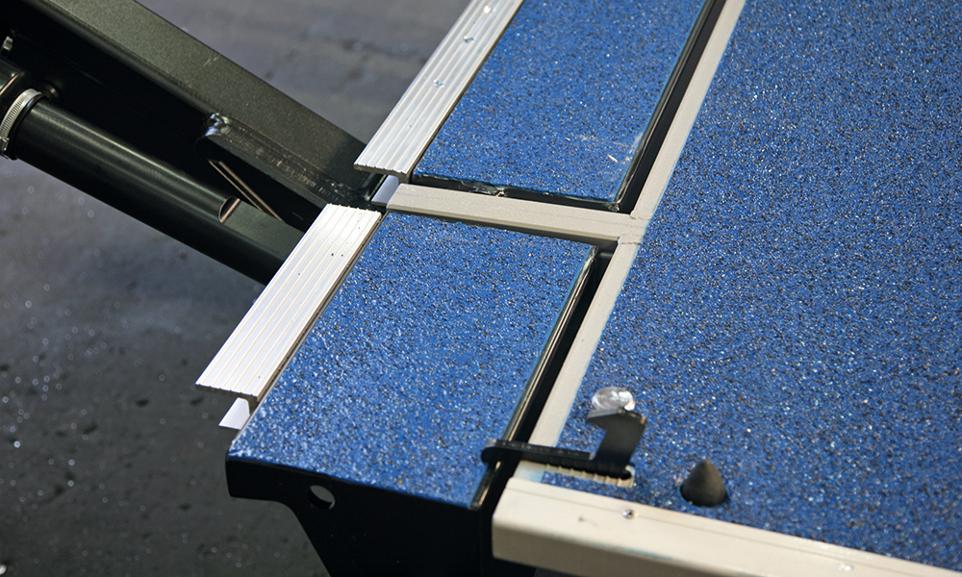

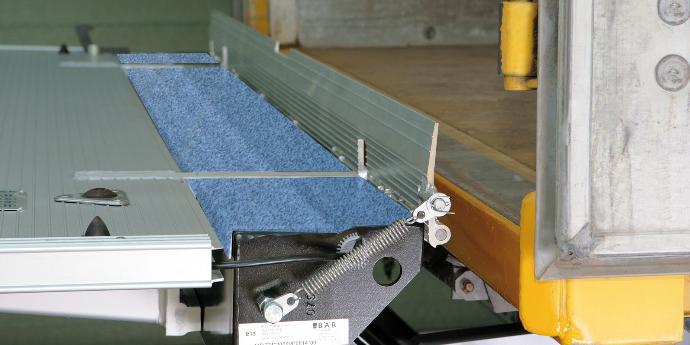

The Ret/HydFalt platforms are either equipped with an aluminium bridge plate or with a folding bridge including lifting arm stops (see above). Optionally, it can be coated with noise-reducing SilentGrip.

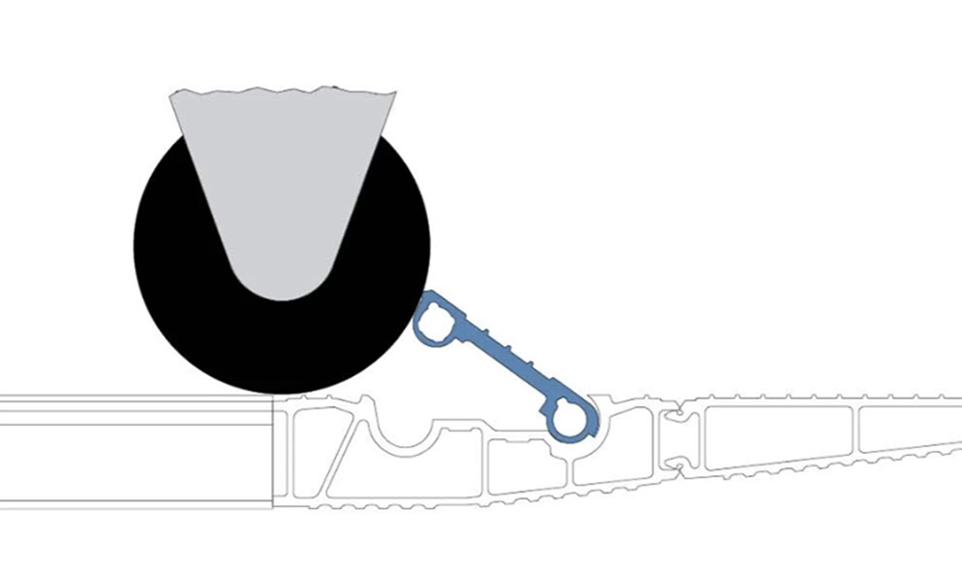

For the safe transport of your roll containers - trolley stop 2rd
The trolley stp 2rd enables the simultaneous transport of two roll containers. The flaps have an opening angle of 43° for roll diameters up to 110 mm. The flaps open individually with one operating lever per flap and have two switching positions.

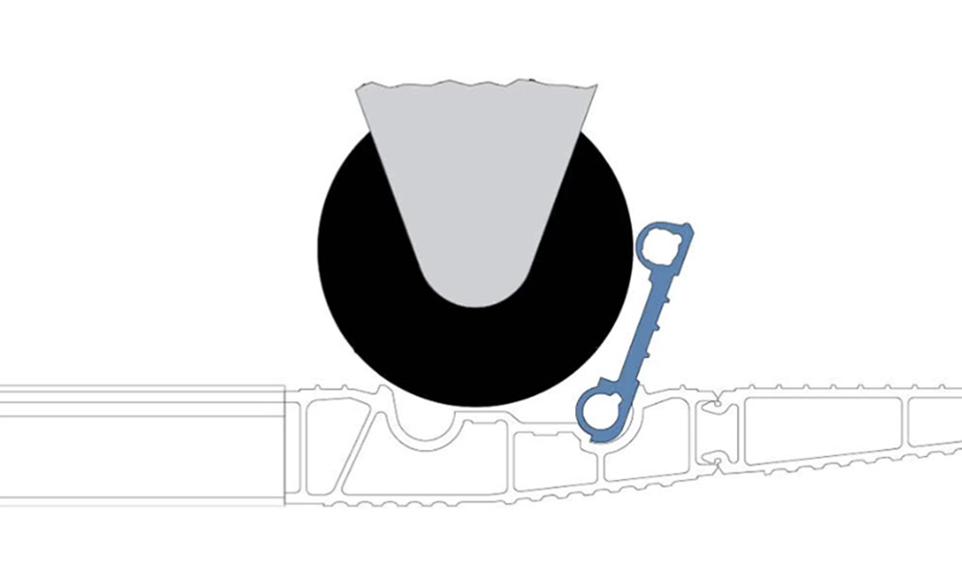

For the safe transport of your roll containers - trolley stop 2ad
The trolley stp 2ad enables the simultaneous transport of two roll containers. The flaps have an opening angle of 110° for roll diameters up to 200 mm. The flaps open individually with one operating lever per flap and have two switching positions.
Further content on Bär Cargolift Ret/HydFalt

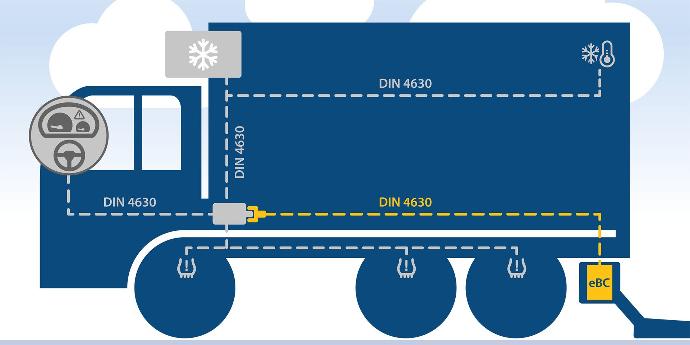

Use the data of your Bär Cargolift!
All Bär Cargolifts are equipped with the Bär CargoConnect data interface. If the software option is active and the electronic control unit eBC Controller is connected to your telematics, you can use the data.
Round-the-clock advice - product recommendation MyCargolift
You know your vehicle and your transport task - find the right tail lift for it! Because the product recommendation MyCargolift determines the suitable Bär Cargolift based on five pieces of information. Try it out directly!

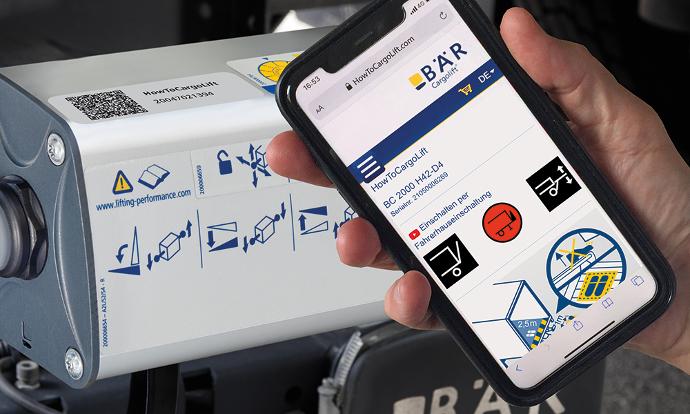

The serial number-specific instruction manual HowToCargoLift
Driver qualification is a key factor in professional distribution transport. At the same time, technology is constantly evolving. That's why BÄR offers you the online driver training HowToCargoLift. After entering the serial number (or scanning the QR code on the Bär Cargolift), you will receive a short instruction manual of exactly that Cargolift - available in eleven languages.
