The control box Bär Control EVO
Innovation by tradition - BÄR's robust trademark in its highest stage of development

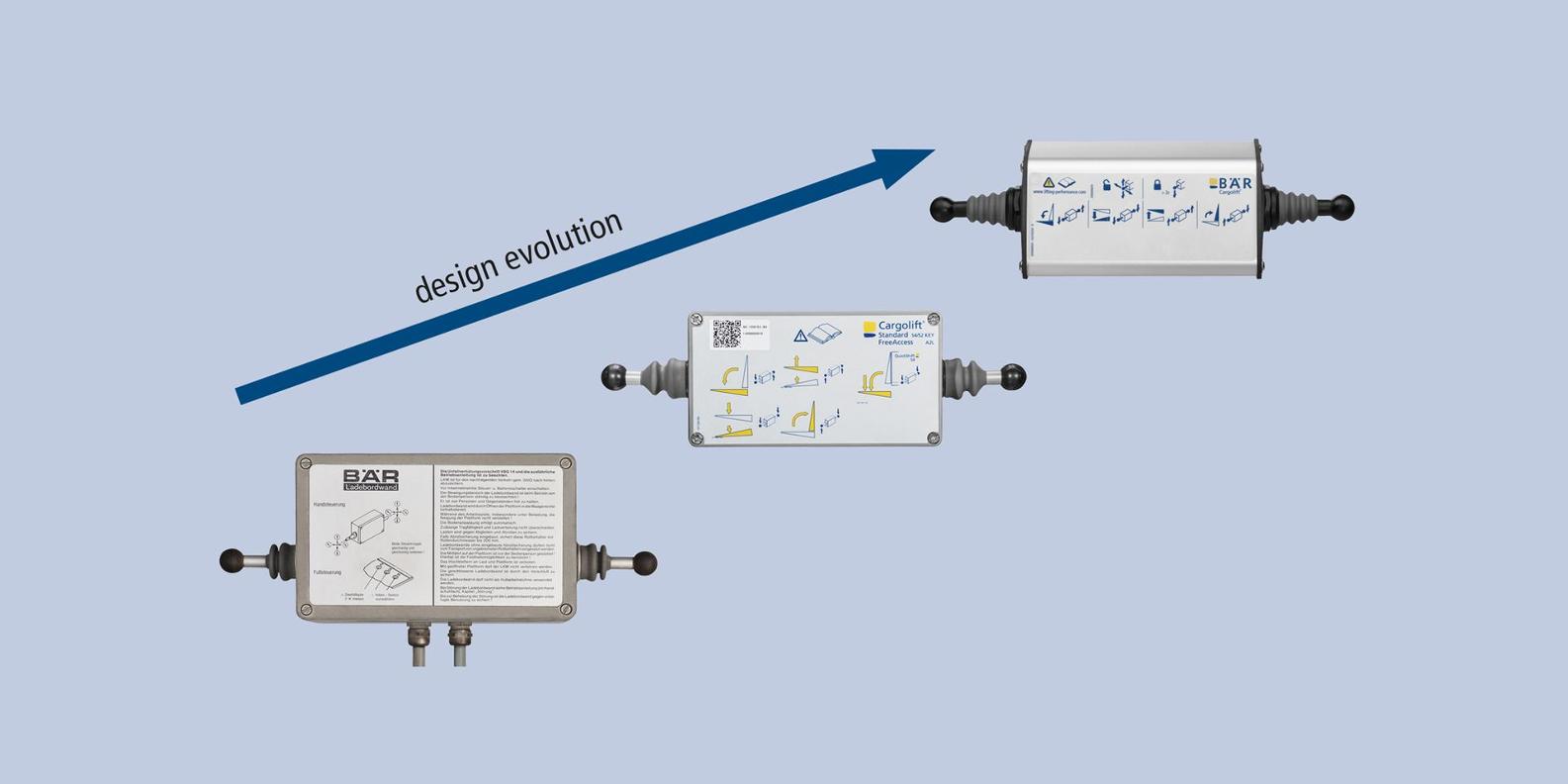

Form follows function - it also controlled the Bär tail lift of the 80s according to this motto. Since then, the Bär control box has been a symbol for Bär Cargolift like no other component: Reduced to the essentials, with a focus on a logical process, tried and tested many times over in tough use!

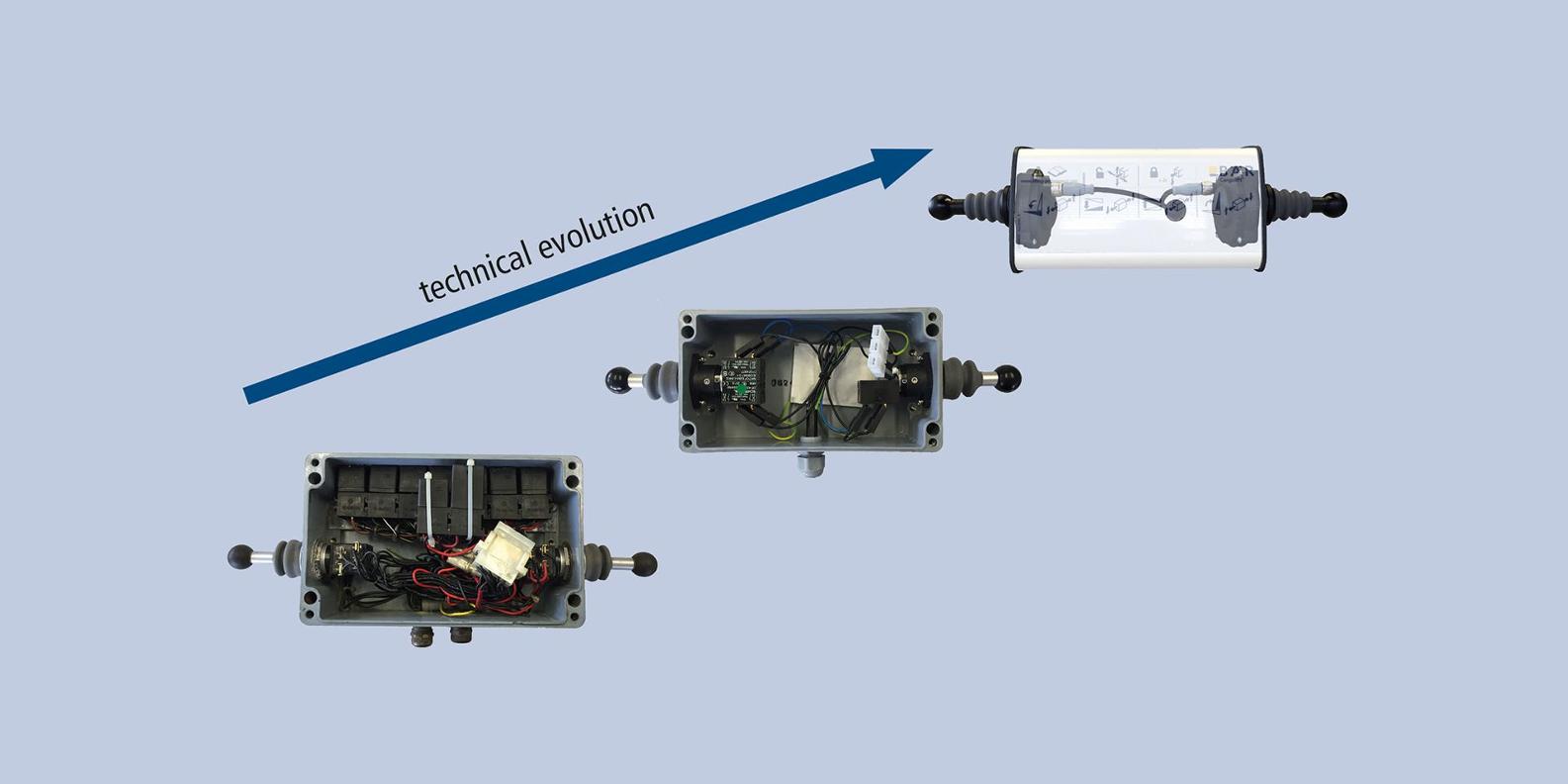

In 2016, Bär now presents the next generation of its control box - affectionately referred to internally as “EVO”. Because the Bär Control EVO retains the proven, robust body as well as the logical operating sequences. New are the outer shell which is enhanced through the use of aluminium and the lever switches. The control elements are more robust than ever before. Sensitive electrical components are installed and protected in the beam. And: With the Bär Control EVO, the control lever becomes a key switch.
Standard functions of the control levers

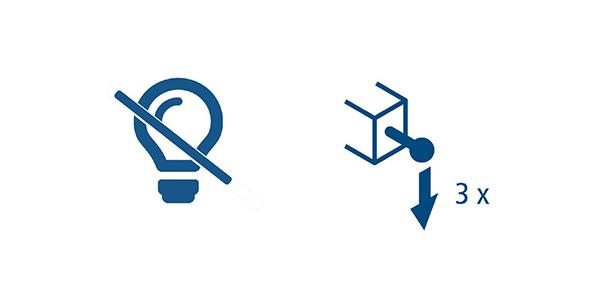

Switch off flashing lights
If the right operating lever is pressed down three times, the flashing lights are switched off when the platform is open, for example when using the platform on a ramp.
Operating film switching off the lights via the control box on YouTube

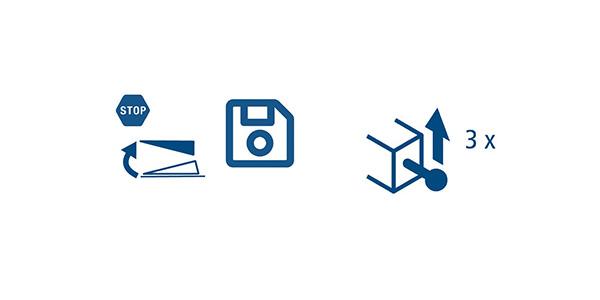

Save tilt-up/down angle
The current platform angle is saved as the tilt-up/down angle when the button is pressed upwards three times - a clear advantage for Standard S2 products.

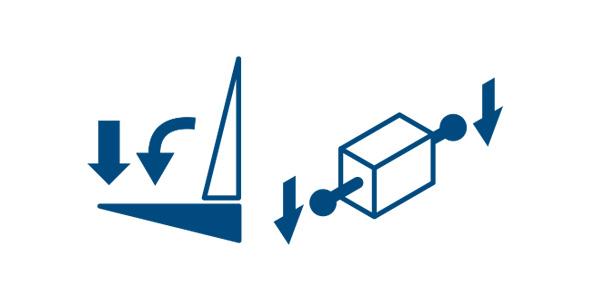

Simultaneous opening and lowering of the platform with QuickShift
When the platform of Standard S4 Cargolifts is closed, valuable time can be saved with QuickShift - triggered by the lowering command on the control box Bär Control EVO. Since the last software update of BC.OS, QuickShift is also possible when using other operating elements.
Optional additional functions of Bär Control EVO

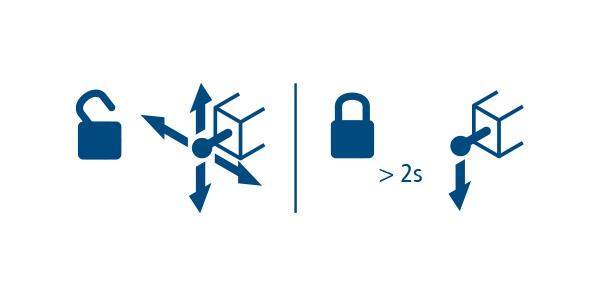

Switching on and off with SwitchKey
Switching the Cargolift on and off with the left operating lever. SwitchKey is standard equipment for Cargolifts that are designed to be mounted exclusively on trailers or semi-trailers.
Operating film for switching on and off via SwitchKey on YouTube

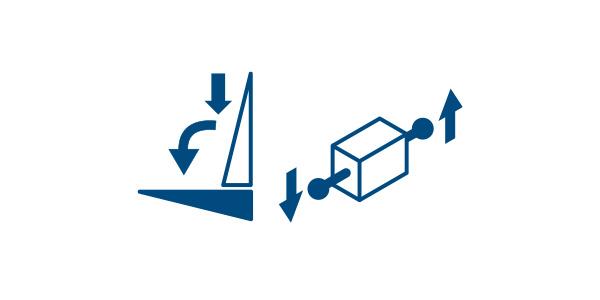

Automatic SoftLock function for Standard Cargolifts
If the standard platform is used as a rear closure, SoftLock allows the platform to automatically extend and retract under the load securing rail when opening and closing.
Operating film for SoftLock on YouTube
To the working position and back with one operating command - EasyFold for HydFalt
With the automatic function, the operator can keep an eye on his surroundings and at the same time operate safely, easily and comfortably. EasyFold can be controlled from any platform position.
Additional equipment for Bär Control EVO

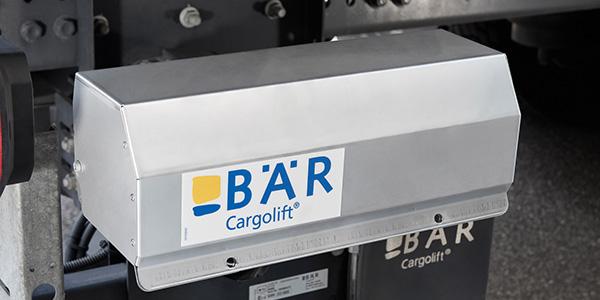

Stainless steel protective cover
External, electrical key switch
For mounting on the holder of the operating unit. Prevents unwanted operation as an alternative to SwitchKey.
Additional content for Bär Control EVO
Diagnostic software Bär CargoCheck
You can see the SwitchKey code - as well as many other things - in the diagnostic software Bär CargoCheck.
Bär Control EVO and other control elements in the spare parts catalogue
For a quick overview of features, kits and availability, BÄR recommends the spare parts catalogue.
Bär Cargolift HydFalt – hydraulically foldable and retractable
Whether with the EasyFold automatic function or without - Bär Control EVO and HydFalt are a dream team.
The intelligent control eBC Controller PRO
The control system that thinks for itself. It enables automatic function sequences, emergency button operation and much more.
Frequently Asked Questions - FAQ
Bär Control EVO is an advanced tail lift control unit designed to provide robust, intuitive, and reliable operation in demanding commercial vehicle environments. It combines proven control logic with an upgraded aluminum housing and highly durable lever switches to improve long-term performance. The system is engineered to simplify operation while protecting sensitive electrical components inside the support beam. This control concept is specifically developed for Bar Cargolift tail lifts.
The control unit features a reinforced aluminum outer shell, robust lever switches, and protected electronic components integrated within the main beam. These design elements help withstand harsh daily operating conditions, frequent use, and exposure to demanding logistics environments. This durability makes it a reliable solution for operators of Bar Cargolift tail lifts.
QuickShift enables the platform to open and lower simultaneously, reducing unnecessary waiting times during loading and unloading operations. This functionality helps operators save valuable seconds on every loading cycle, increasing overall productivity in logistics processes. This automatic function can be realized by the function "lower" when the Standard platform is closed. QuickShift is an efficiency-enhancing feature available for Bar Cargolift Standard tail lifts.
SwitchKey allows operators to switch the tail lift on and off directly via the left control lever at the control box. By integrating the activation process into the control unit, the system reduces the need for additional switches and improves operational convenience. SwitchKey is a practical feature designed for modern Bar Cargolift tail lifts.
SoftLock automatically guides the platform beneath the load securing rail during opening and closing procedures. This automated movement helps reduce operator intervention, improves consistency, and minimizes the risk of handling errors. The SwitchKey code – along with a wealth of other information – can be read directly using the Bar CargoCheck diagnostic software. SoftLock enhances operational safety and convenience on Bar Cargolift Standard tail lifts.
By moving the left control lever upwards three times, the current angle of the open platform can be saved as the ‘save tilt up angle’. This angle is automatically taken into account during subsequent operations. This makes the day-to-day use of Bar Cargolift tail-lifts more efficient and convenient. If the Bar Cargolift is equipped with a mechanical link, it ‘remembers’ the ‘end-of-tilt’ angle during every lifting operation.
