Standard / FreeAccess 750 kg
The tail lift for trucks with gross vehicle weight 3.5 - 7.5 t
Open, closed, up, down – this is how one could define the requirements for a tail lift. In the light vehicle classes, the payload plays a central role. For this purpose, BÄR offers the weight-optimised BC 750 S2L. If a ball head coupling is often used, the fixed underrun bar of the BC 750 S4 is an advantage. When transporting bulky goods, the BC 750 S2S supports with a high load moment and high platforms. And for frequent pick up of smaller quantities, the vertically folded FreeAccess platform of the BC 750 A2L allows free access to the charging space at all times. The key factor for all these Cargolifts is either the 2=4 technology (S2 with 2 cylinders) or the weight-optimised further development of the proven S4 products (4 cylinders). Because stable and at the same time lightweight Cargolifts are the optimal companions for the light vehicle class.

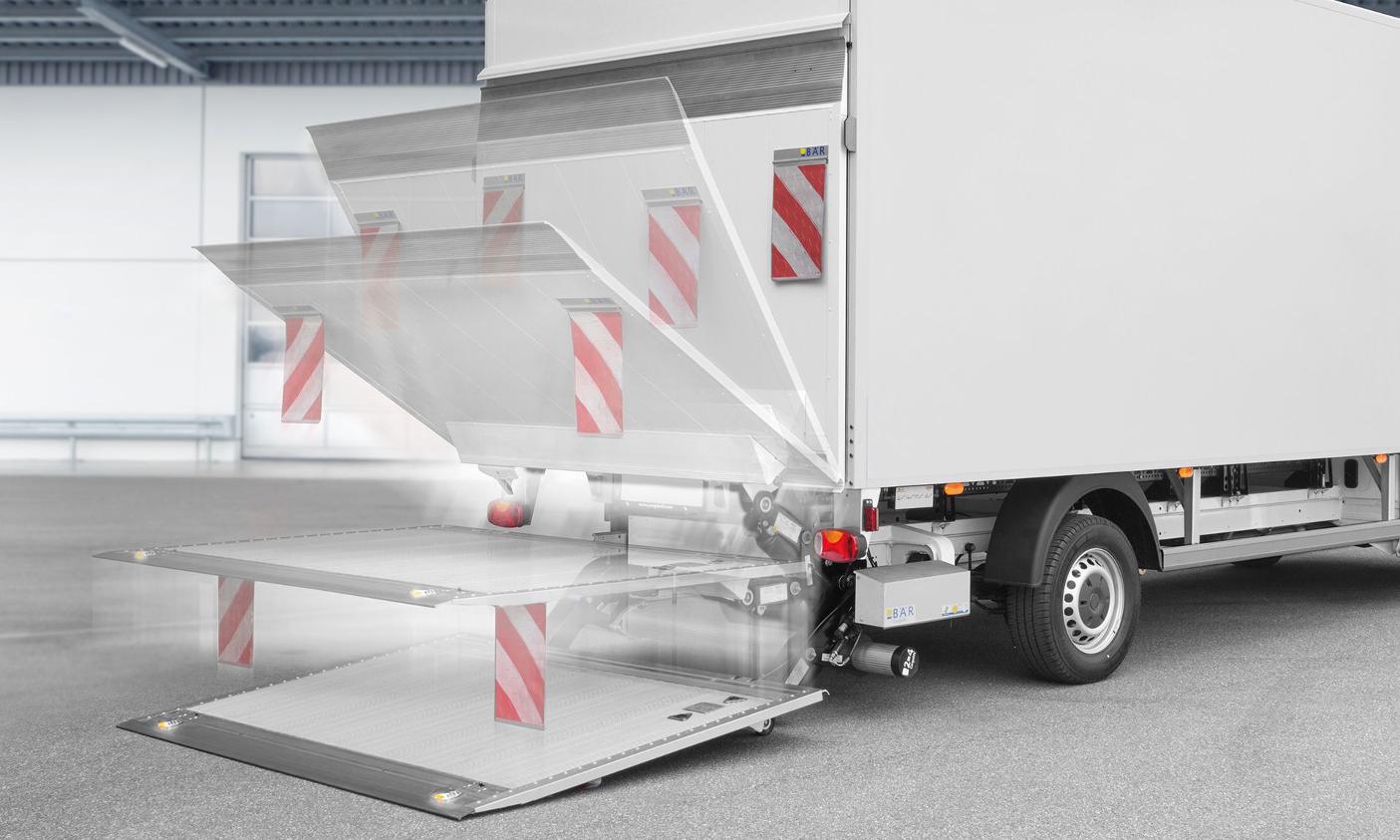

Bär Cargolift Standard / FreeAccess 750 kg
Designed for tranporter chassis
Transporters with a permissible total gross weight of up to 7.5 t have a number of different chassis. They are usually fitted with Cargolifts with a load capacity of 750 kg. In addition, the requirements for a tail lift in the light vehicle classes are as versatile as its use. Bär Cargolift supports you with four Cargolift types with lifting capacity 750 kg.

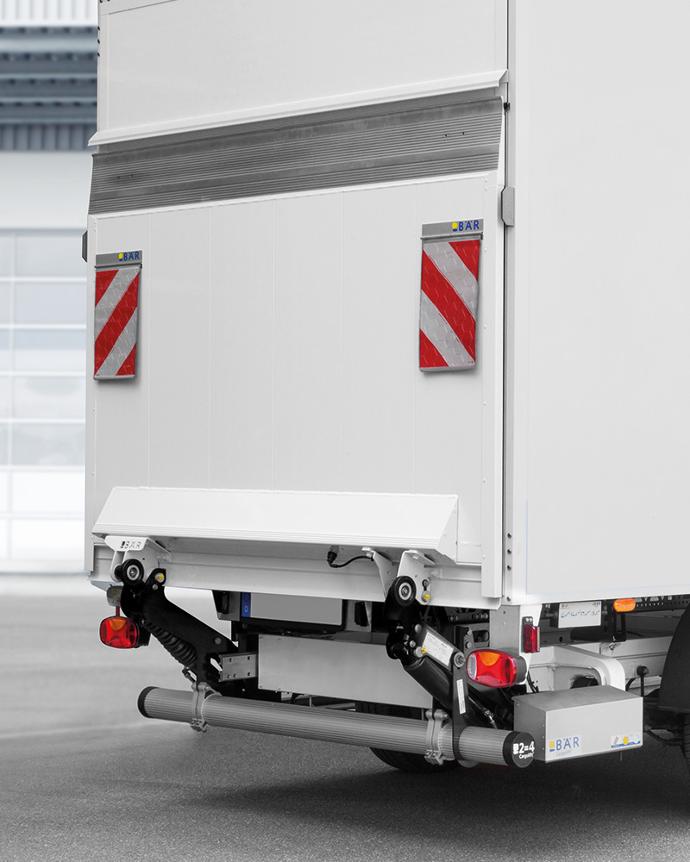

BC 750 S2L
If the emphasis is on payload, this tail lift lifts 750 kg and weighs only 160 kg

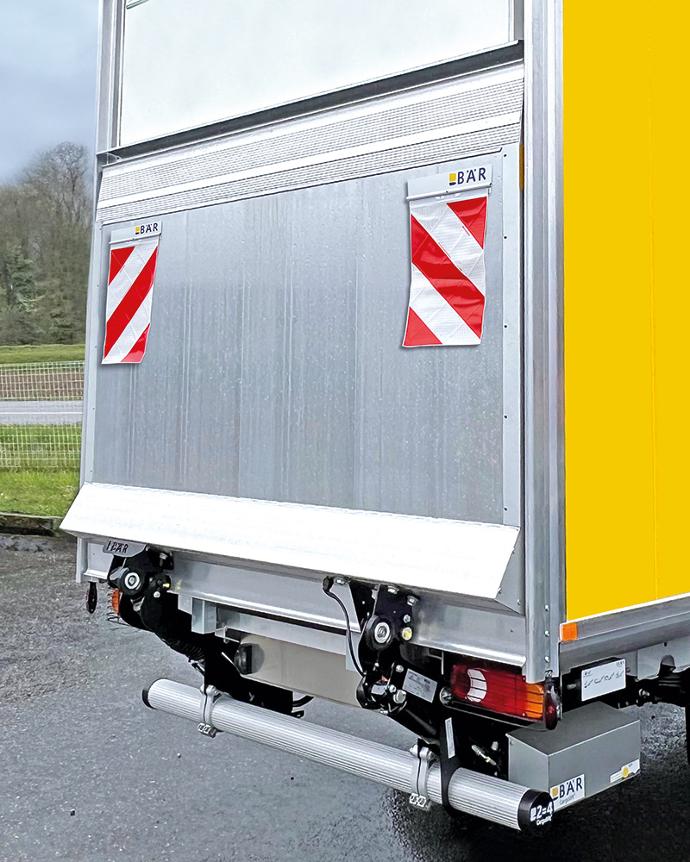

BC 750 S2S
For heavy loads and high platforms, this lift offers a strong 750 mm load distance

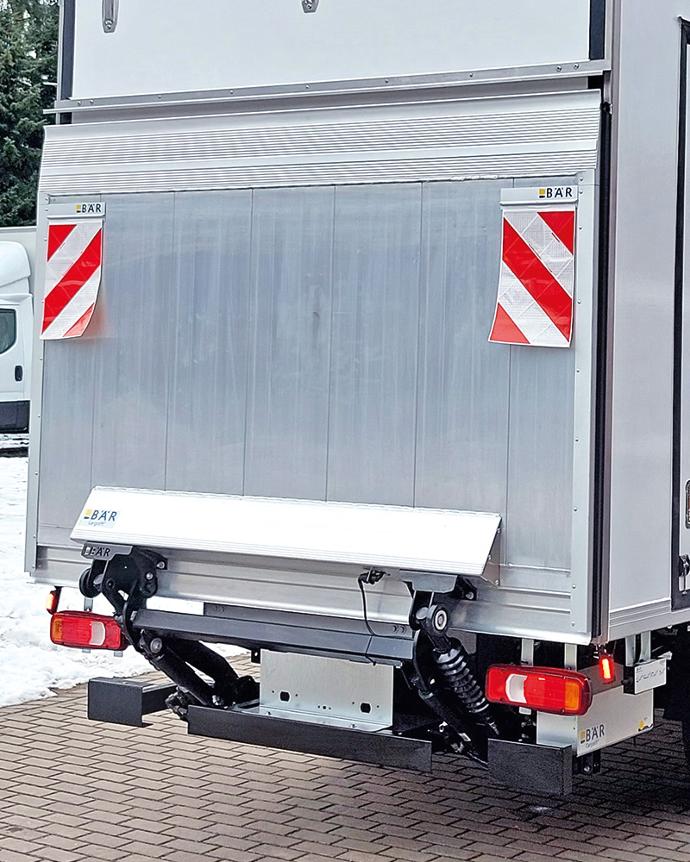

BC 750 S4
With fixed underrun bar and four cylinders

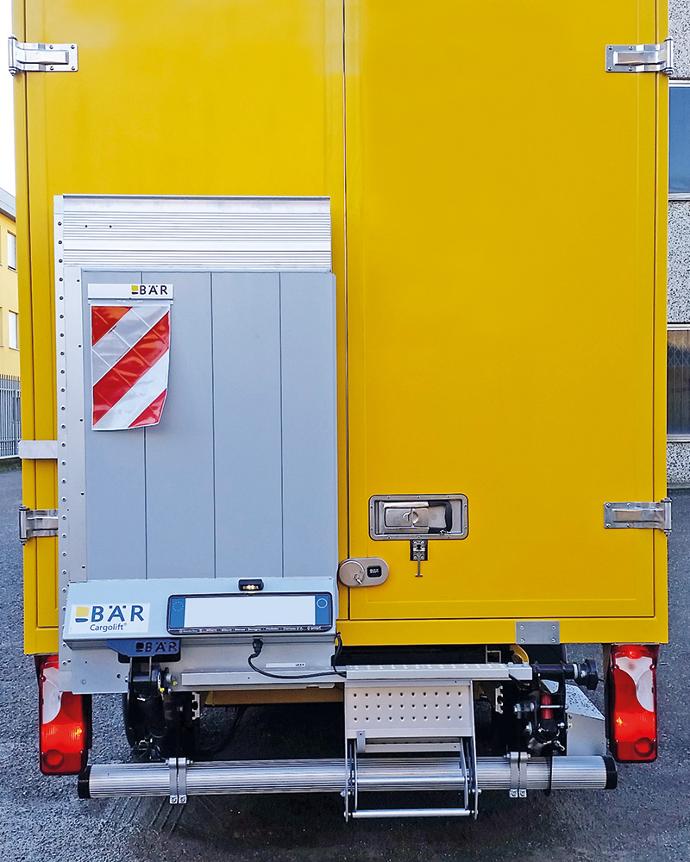

BC 750 A2L
For maximum flexibility, the vertically folding FreeAccess platform allows free access at all times
Equipment for Bär Cargolift Standard / FreeAccess 750 kg
The multitude of different chassis as well as the manifold requirements lead to specific equipment for the product group Standard / FreeAccess 750 kg. At the same time, simple and safe operation is of central importance. After all, qualified drivers are valuable and must be optimally supported in their work. Here you will find a selection of the available equipment, more information is waiting for you in the portfolio brochure.

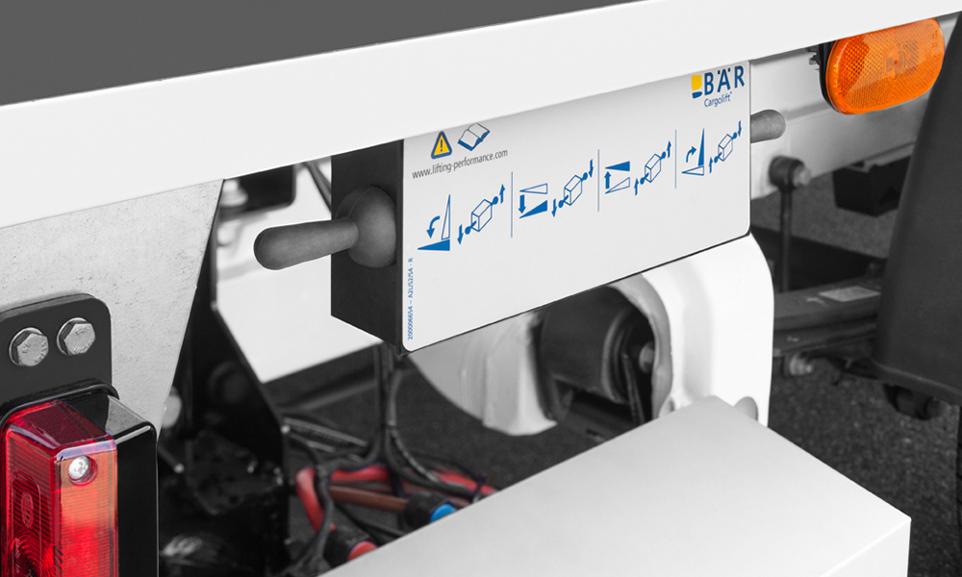

The standard control box of BC 750
With the control box you can use the basic functions of the Cargolift. In addition, the control box can be used to switch off the flashing lights, save the angle of platform tilting and, for the BC 750 S4, to simultaneously open and lower the platform with QuickShift.
Operating film BC 750 S4 with control box on YouTube
Learn more about the additional functions
The simple and at the same time safe radio control - Bär SmartControl Basic
BÄR offers the Bär SmartControl Basic radio remote control for operating the basic functions by radio. Because three control buttons are enough! Safety is provided by the close-range detection and the AutoStop45° when closing the platform.
Operating film BC 750 S4 with Bär SmartControl Basic on YouTube
The aluminium platform - foldable or full-width
All BC 750s are equipped with a lightweight yet stable aluminium platform. The foldable FreeAccess platform is powder-coated in RAL 9006 white aluminium on the back; the back of the wide standard platforms is natural aluminium as standard. The TracGrip anti-slip platform tread increases safety on the platform. Alternatively, the noise-reducing coating SilentGrip is available.
Learn more

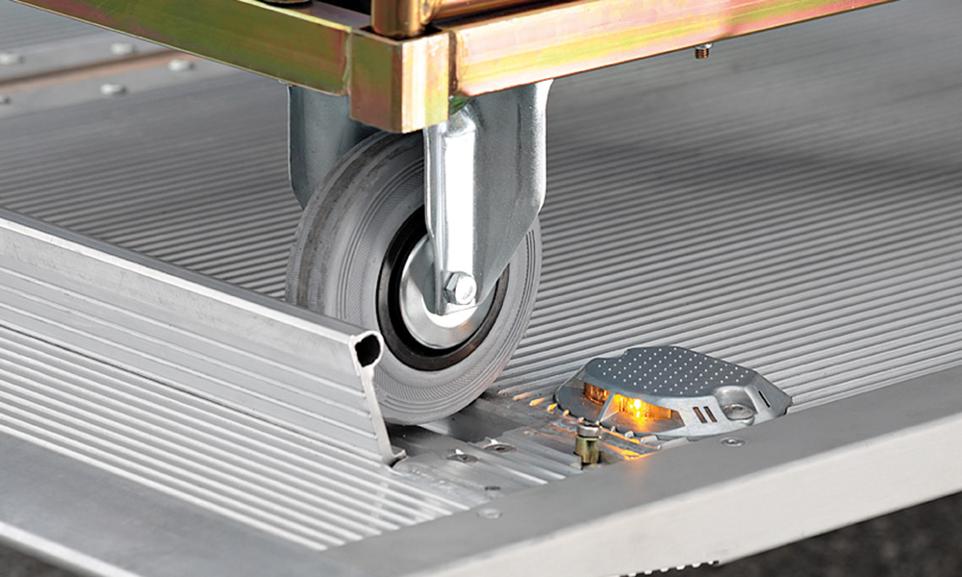

For the safe transport of your roll containers - trolley stops / recesses
At BÄR, the roll-off securing devices are just as robust as the platform on which they are placed. Because every BÄR roll-stop has a double bottom. BC 750 A2L is equipped with roll-off protection 2ad as standard. For BC 750 S, you have the option of choosing between the 2ad and 2rd trolley stops; BC 750 S2S can also be equipped with recesses.

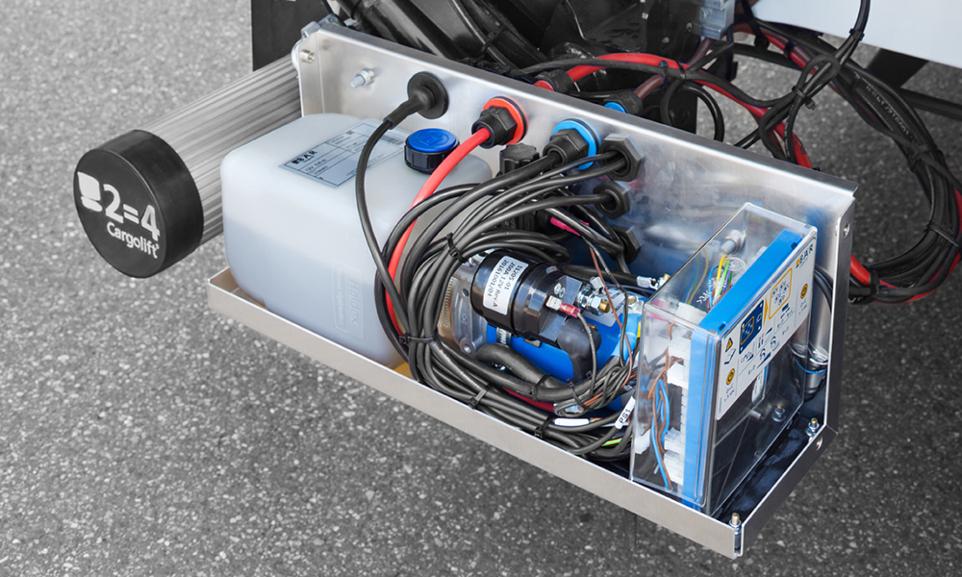

Power pack case with electronic control unit eBC Controller
Motor and control unit are easily accessible and at the same time protected in the housing. If necessary, simple emergency operation of the four basic functions is possible via buttons on the eBC Controller.

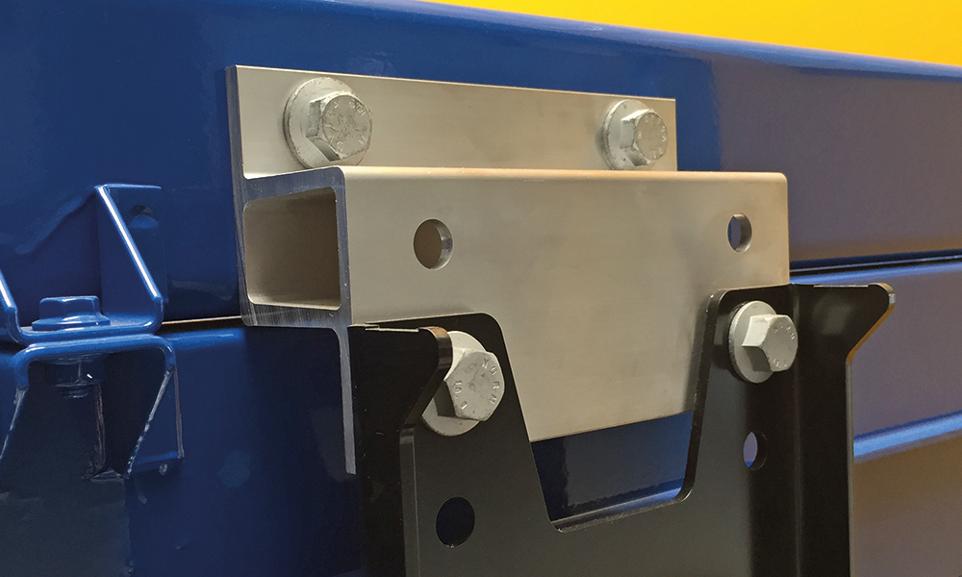

Mounting adapter for BC 750 S2L / S2S / A2L
Due to the wide variety of chassis, a fitment adapter is required for most attachments. This is made of lightweight aluminium, but increases the weight of the Cargolift. You can find more details in the portfolio brochure or in the BC 750 brochure:

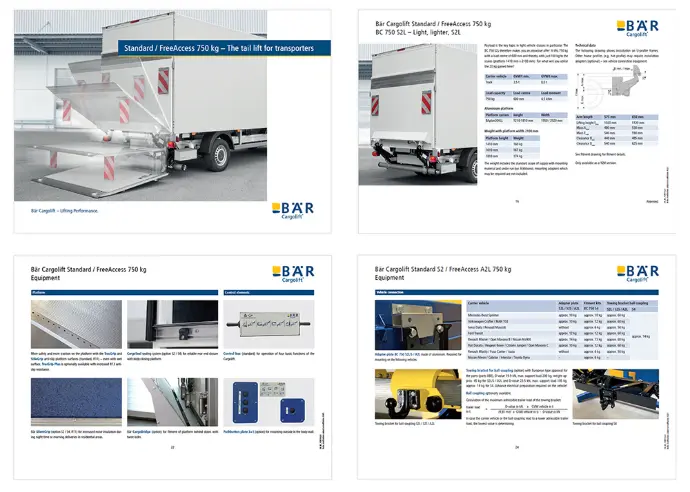

pdf download brochure on Bär Cargolifts with load capacity 750 kg

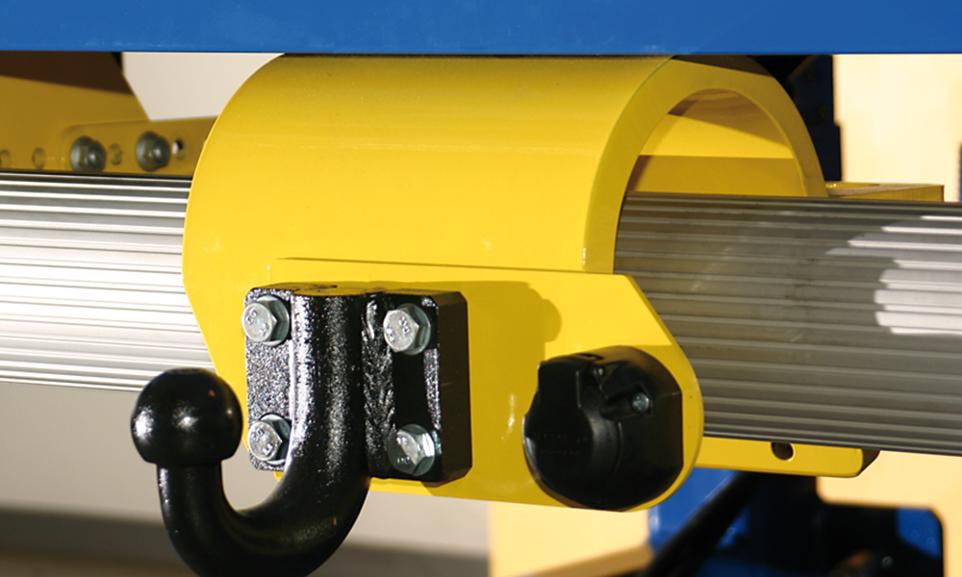

Towing bracket for ball coupling for BC 750 S2L / S2S / A2L
Optionally available is a hitch block for ball head coupling with European Parts Approval. D-value 19.9 kN, max. support load 200 kg, weight approx. 45 kg. Electrical preparation required on the vehicle! The coupling ball is optionally available.

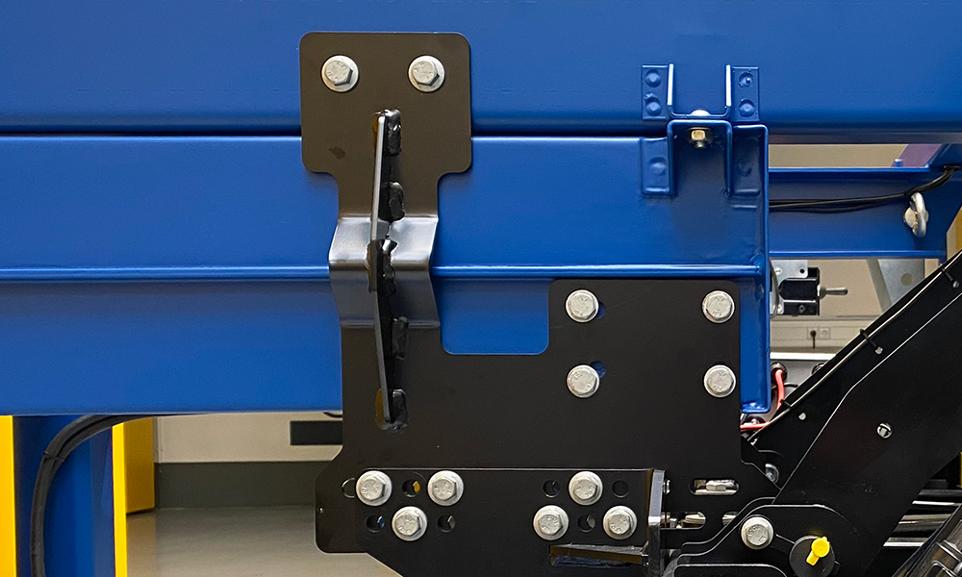

Attachment kits for BC 750 S4
The variety of chassis leads to vehicle-specific attachment kits for BC 750 S4. These are designed for low weight, but increase the weight of the Cargolift. You can find more details in the portfolio brochure or in the BC 750 brochure:
pdf download brochure on Bär Cargolifts with load capacity 750 kg

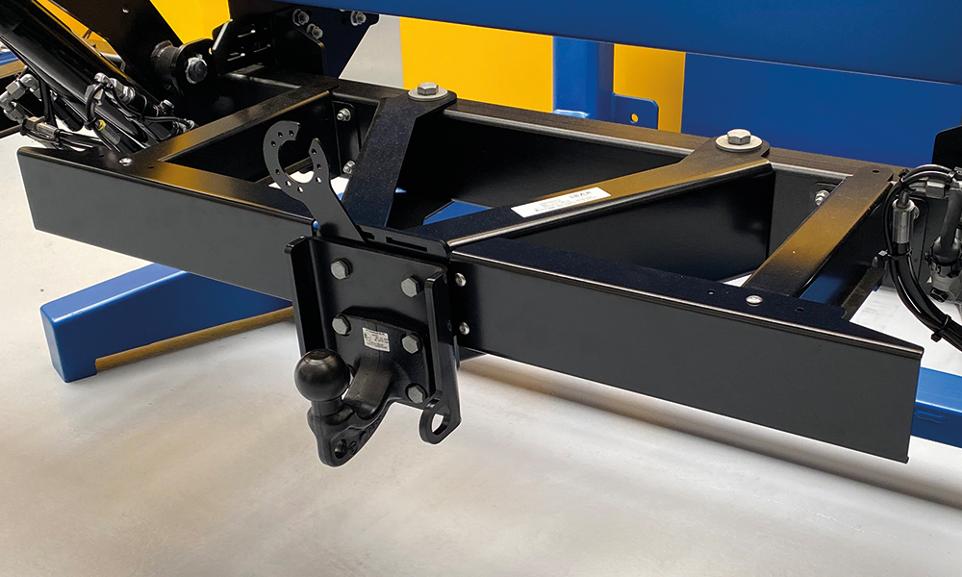

Towing bracket for height-adjustable ball coupling for BC 750 S4
Optionally available is a hitch block for ball head coupling with European Parts Approval. D-value 23.5, kN, max. support load 185 kg, weight approx. 14 kg. Electrical preparation required on the vehicle! The coupling ball is optionally available.
Related Content for Bär Cargolift Standard / FreeAccess 750 kg

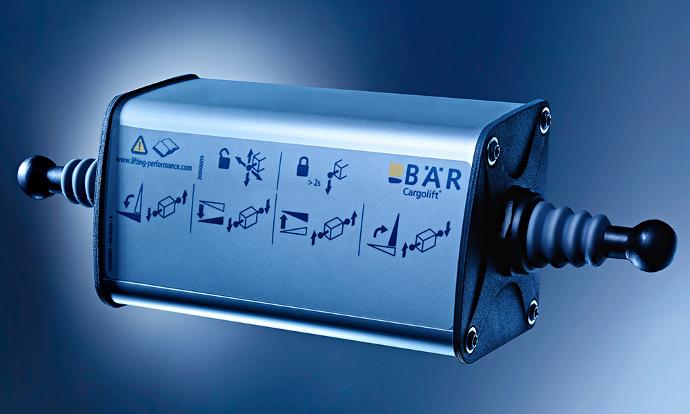

The control box Bär Control EVO
The standard control box can be replaced by the Bär Control EVO operating unit.

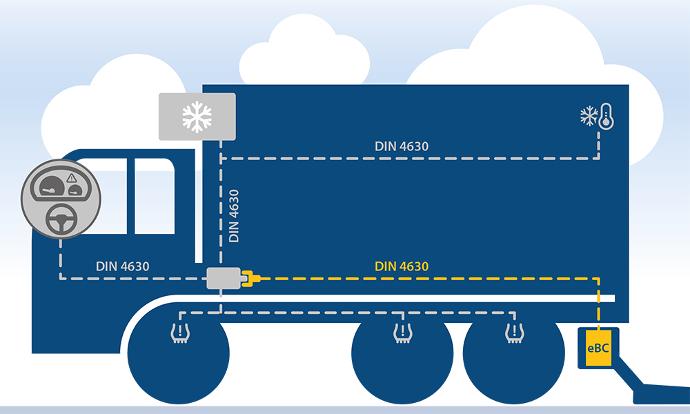

Use the data of your Bär Cargolift!
All Bär Cargolifts are equipped with the Bär CargoConnect data interface. If the software option is active and the electronic control unit eBC Controller is connected to your telematics, you can use the data.

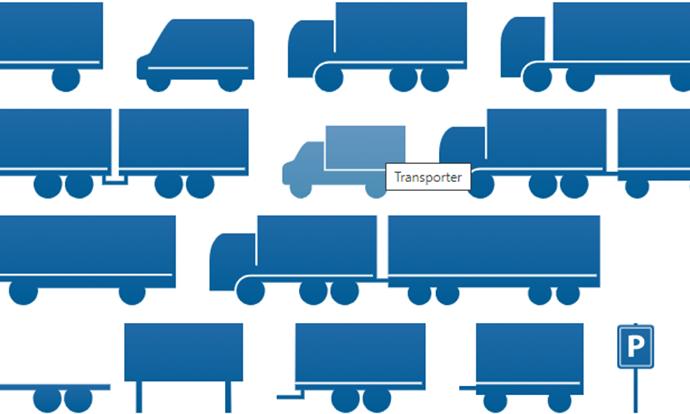

Round-the-clock advice - product recommendation MyCargolift
You know your vehicle and your transport task - find the right tail lift for it! Because the product recommendation MyCargolift determines the suitable Bär Cargolift based on five pieces of information. Try it out directly!
Does the tail lift fit the vehicle?
The vehicle is in the yard and you want to check if the mounting is possible? That's where the Bär fitment calculation programme assits. BÄR has been offering this online solution since 2008 - seven days a week, all day! It's best to fill out the dimension sheet in advance so that you have all the data ready.

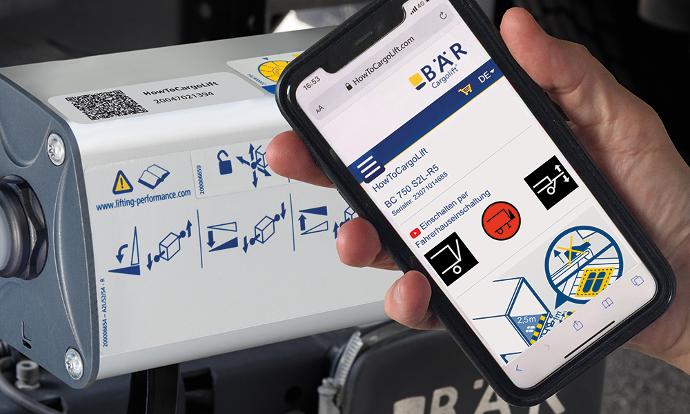

The serial number specific instruction manual HowToCargoLift
One issue is of central importance in professional distribution transport: simple and safe operation. After all, qualified drivers are precious and must therefore be optimally supported in their work. That's why the online driver training HowToCargoLift provides the operating instructions for your Cargolift. With pictures and films. In eleven languages.
